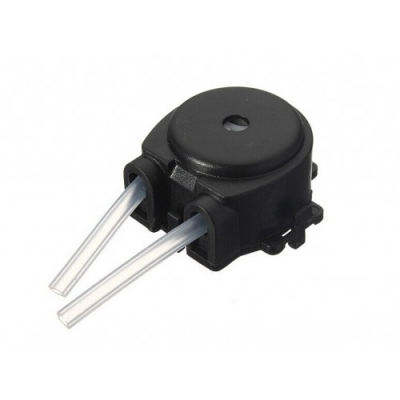

Using snap design, just hand touch you can remove the pump head is very easy to replace and clean the pump tube, compact design both tablet-style convenience, but also to avoid the head-piece pressure hose walking and many other issues.

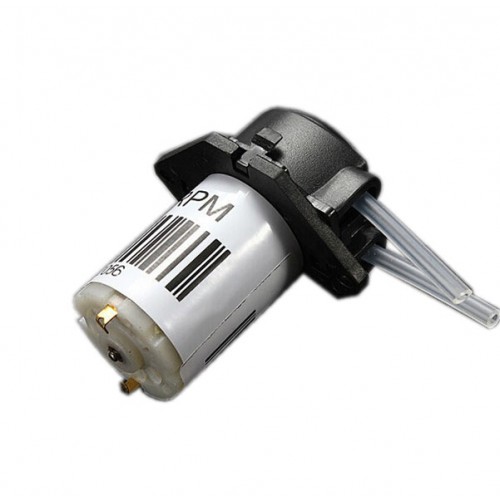

The Peristaltic Liquid Pump with Silicone Tubingis basically a geared down DC motor, so it has a lot of torque. Inside the pump is a 'clover' pattern of rollers. As the motor turns, the clover presses on the tube to press the fluid though. The pump does not need to be primed and in fact can self-prime itself with water a half meter with ease.
Specification :
Power supply : DC 12V
Working environment : temperature 0-40 ℃, relative humidity <80%
Medium flow : the flow of the peristaltic pump connection depends on the power level of positive and negative, positive and negative terminals can be arbitrarily chosen level.
Flow range : 0-100 ml / min
Speed range : 0.1-100 rpm
Motor RPM : 5000RPM
Drive Size (Φ x H) : Diameter 27.6 x height 37.9 (mm)
Head size (Φ x H) : Diameter 31.7 x height 20.1 (mm)
Equipped with pump tube (ID x OD) : 2.5mm inner diameter x 4.7mm outer diameter.
head type designed for easy disassembly for cleaning and maintenance.
Head: 25 meters, suction lift: 5 m (water test)
