توضیحات

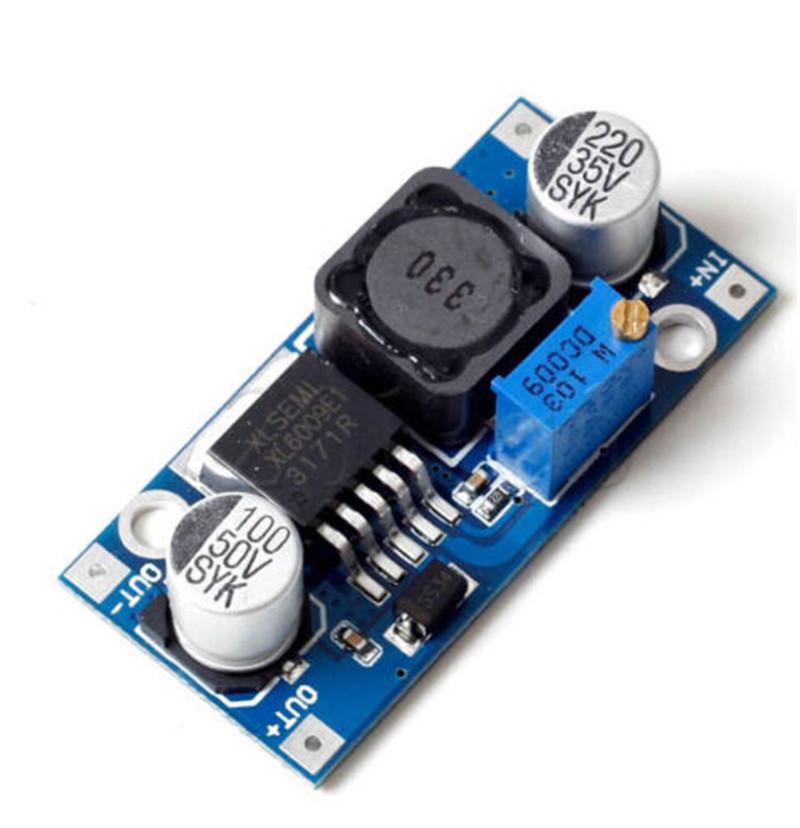

این ماژول افزاینده از رگولاتور XL6009 استفاده کرده که دارای ولتاژ ورودی 3V-32V و خروجی 5V-35V با جریان خروجی 4A می باشد.
Features:
- Model: XL6009 boost module
- Module Properties: non-isolated step-up (BOOST)
- Rectification: Non-Synchronous Rectification
- Input range: 3V ~ 32V
- Output range: 5V ~ 35V
- Input Current: 4A (max), empty load current 18mA (5V input, 8V output, empty load current 18mA, the higher the voltage, the greater the empty load current.)
- Conversion efficiency: <94% (the greater the pressure, the lower the efficiency)
- Switching Frequency: 400KHz
- Output ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)
- Load regulation: ± 0.5%
- Voltage regulation: ± 0.5%
- Working temperature: -40 ℃ ~ +85 ℃
- Dimensions: 43mm * 21mm * 14mm (L * W * H)
