Product description
Features: at the same time, a wear-resistant copper sleeve is added to the feeding port and the discharge port, which can effectively extend the service life of the product.

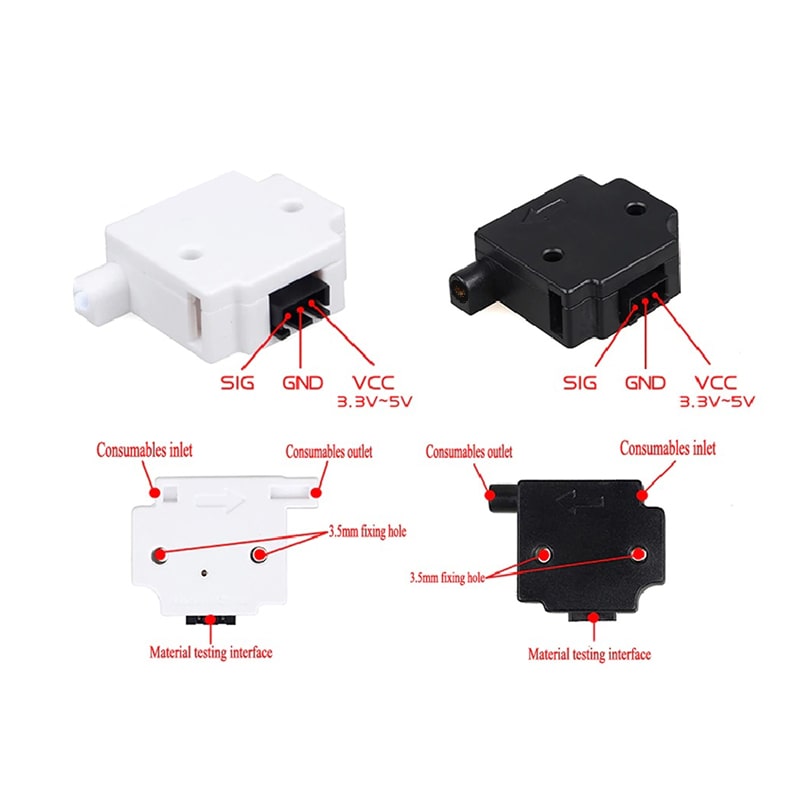

Use on the main board: when the material is, the module green light is always bright, the material is exhausted, the green light goes out, the main board executes the suspension command operation, waiting for the man to replace the good material and continue to print. The main board wiring of the music product: the M-sensor port on the main board.
Use on other motherboards: the material detection module uses a level jump detection mode. When there is material, the level signal of the test port should be high level. When the material is no material, the level signal of the material is changed to low level. The system detects a high level to low level jump. Then it is considered that the material is exhausted and the pause command is executed, waiting for the waiting. After the replacement of good material, the execution continued to print.
Specifications: suitable for 1.75mm material testing, suitable for 3.0mm material testing.
We are looking forward to a further extension of pleasant business relation. If you have any question or need something, plesae contact us,we will do our best to make you satisfied.
to worldwide , send by China Post Airmail.Delivery time about 20-30 business days. Some country may delay 1-2 weeks.
If you wanna get the product urgently, We also can send it by EMS or UPS,DHL etc,But You need to pay some freight more . Do contact us first if you want to change to EMS,UPS,DHL etc.
Shipping and handling charges are not
Item specifics:
Item type: Hardware Parts/Machine Parts
