سنسور تشخیص فاصله مادون قرمز GP2Y0A710K0F توانایی اندازه گیری فاصله در محدوده 100cm - 550cm را دارد. خروجی این سنسور به صورت ولتاژ آنالوگ بوده که متناسب با مقدار فاصله می باشد.

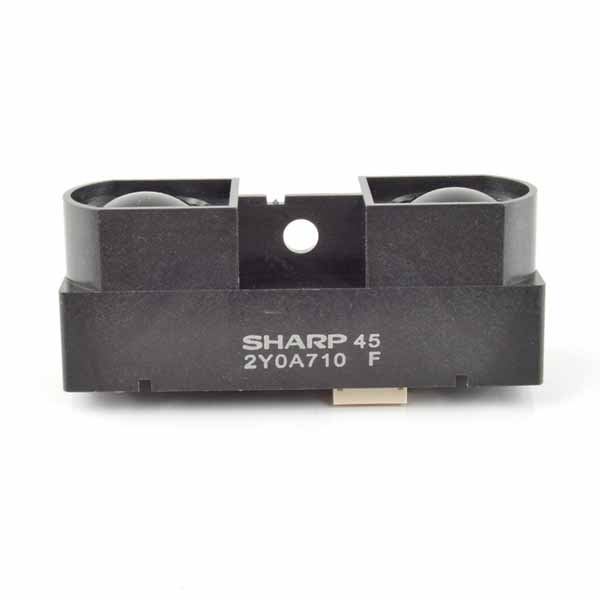

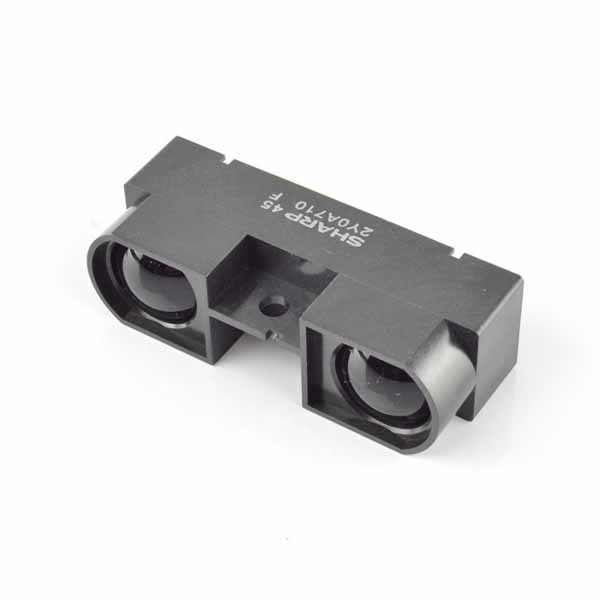

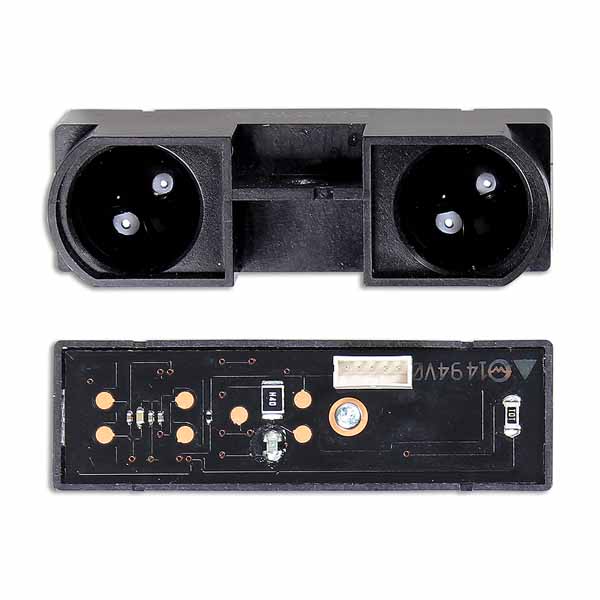

The Sharp GP2Y0A710K0F measures distances in the 100–550 cm range using a reflected beam of infrared light. By using triangulation to calculate the distance measured, this sensor can provide consistent readings that are less influenced by surface reflectivity, operating time, or environmental temperature. The Sharp GP2Y0A710K0F outputs an analog voltage corresponding to the distance to the reflecting object.

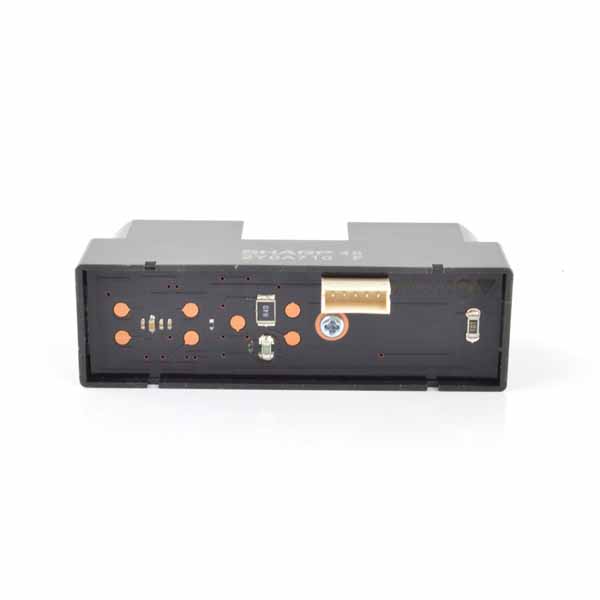

A custom cable is included, bringing the sensor's 5-pin JST connector to a standard 3-pin female header, color coded for ground, power, and signal.
Pair this sensor with the Sharp GP2Y0A02YK0F IR Distance Sensor 20-150 cm to obtain infrared distance detection over the entire 20-550 cm range.
Key Features:
- Analog voltage output can be easily read by an inexpensive ADC or analog I/O pin
- A mounting hole attaches to your project
- Custom cable included, bringing the sensor's 5-pin JST connector to a standard 3-pin female header
Application Ideas:
- Long-range object detection for autonomous robots
- Perimeter alarm systems
- Touchless switch for hands-free equipment control
Product Details:
- Voltage requirements: 5 VDC
- Range: 100 to 550 cm (approx 39 to 216 inches)
- Current requirements: 30 mA typical
- Communication: Analog variable voltage output
- Dimensions: 2.28 x 0.69 x 0.89 in (58 x 17.5 x 22.6 mm)
- Operating temperature range: 14 to 140 °F (-10 to +60 °C)
