توضیحات

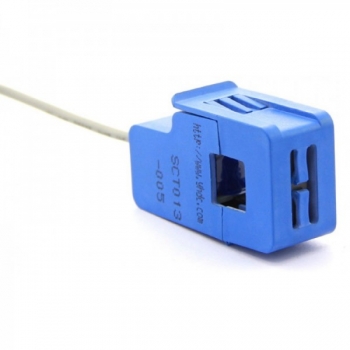

از این سنسور برای اندازه گیری جریان متناوب تا 5A استفاده می شود. و می توان از آن برای اندازه گیری جریان و محافظت موتورهای AC، تجهیزات روشنایی، کمپرسورهای هوا و ... استفاده کرد.
Frequency: 50HZ-150KHZ

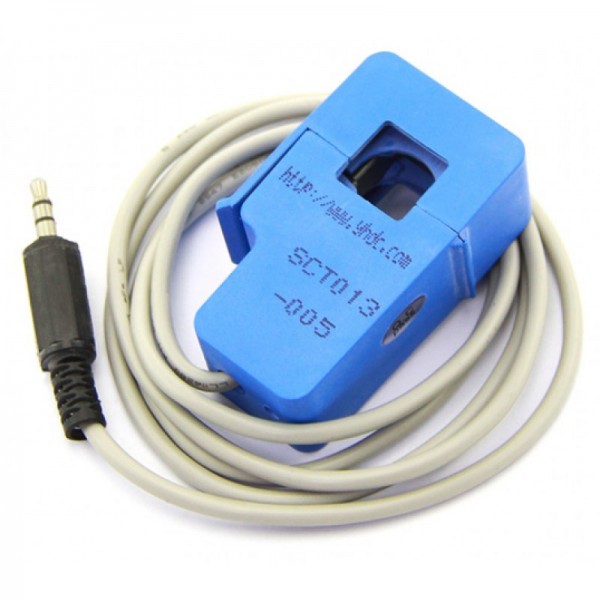

Opening and closing transformer SCT-013 Rated input current: 100A Model: SCT-013 Rated input current: 60A/100A
Features and opening dimensions:

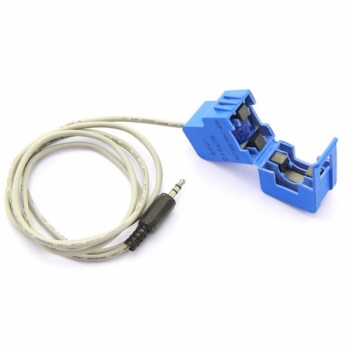

13mm × 13mm, fully compatible with similar foreign products; non-linearity ± 3% (10% ~ 120% rated input current); lead length 1.5 meters, standard Φ3.5 three-pin plug output; current, voltage two output forms ( Voltage output shape built-in sampling resistor).
use:
Used for current measurement, monitoring and protection of AC motors, lighting equipment, air compressors, etc. Core material: ferrite mechanical strength: the number of opening and closing is not less than 1000 times (tested at 20 ° C)
Safety index: anti-electricity (between shell and output) 6000V AC/1min Flame retardant characteristics in line with UL94-V0
Working temperature : -25 ° C ~ +70 ° C
