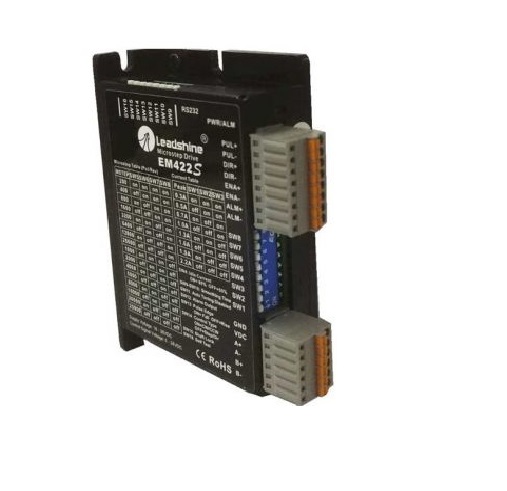

Features of Leadshine Digital Stepper Drive EM-S Series - EM422S:
Step & direction (PUL/DIR) or CW/CCW (double pulse) control
18-36VDC supply voltage
200 KHz max pulse input frequency
micro-step resolutions of 200-25,600 via DIP switches16
8 output current settings of 0.3 – 2.2A via DIP Switches
Configurable control command smoothing to reduce motor vibration
Automatic idle current reduction to 50% or 90%
Convenient self-test for easy diagnosis
Automatic self-configuration to match wide-range NEMA 8, 11, 14 and 17 steppermotors
Anti-Resonance for optimal torque, extra smooth motion, low motor heating and noise
Soft-start with no “jump” when powered on
Optically isolated inputs
Fault output
Over-voltage and over-current protections
CE certified and RoHS compliant
