Description
:Recognizing Code
Such as double-gear 2610-2B is the outer 26 teeth, within 10 teeth, aperture 2mm tight fit
A tight with small 0.05mm aperture than standard
B said loose with than the standard aperture 0.05mm
:Calculate the gear diameter
(Number of teeth +2) / modulus = gear diameter

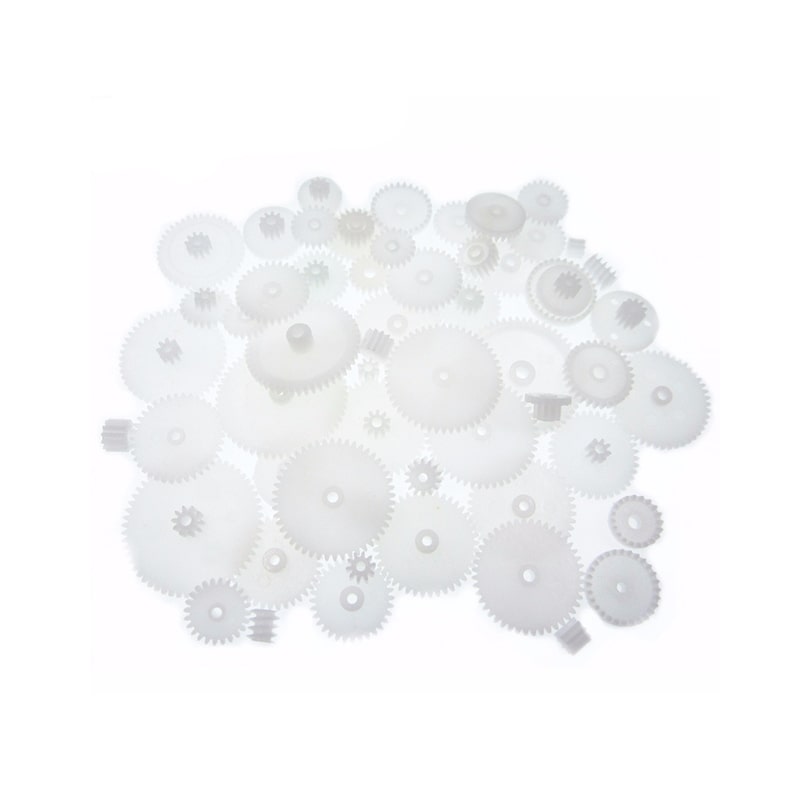

Gear modulus of the package: 0.5
Aperture: 1.5, 2, 2.5, 3
Modulus: 0.5
Aperture 1.5, 2, 2.5, 3
The mainshaft gears: 8-1 .5A 18-2.5A18-3A 82A 10-2A-2A 16-2A 9-2A 12-2A
Crown teeth: C202.5A C24102Ac24102b C30102B
C20-3A C28-2AC30-3A C3610-2B C2810-2A C20-2A
The monolayer Gear: 202A 262A282A402A522.5A 563A24-2.5A 36-2A 38-2A
38-3A 44-2A 44-2.5A 48-2A 46-2.5A 50-3A56-2A 422A 30-2A
Double gear: 18102A 48122.5A 4610-2B 4810-2B 2610-2B 2210-2B
3212-2B 2810-2B 3808-2B 2810-2B 3210-2B
2808-2B 3412-2B 3610-2B
5010-2B 4410-2B 5610-2A 3010-2B 2410-2B
(Worm Gear: 6 * 6 (diameter 6mm * length 6mm), 6 * 8 (a diameter of 6mm, and a length of 8mm
