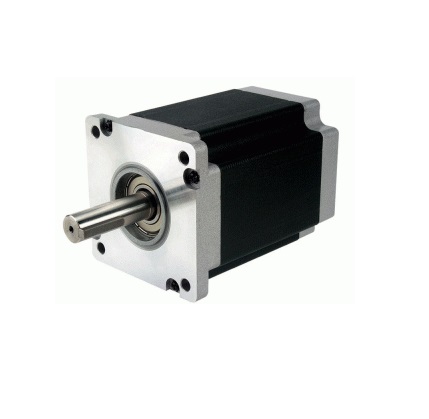

استپر موتور نما 34 گشتاور 120 کیلوگرم سانتی متر مدل 86HS120 برند لیدشاین

توضیحات

The 86HS120 is a 2-phase NEMA 34 hybrid stepper motor from Leadshine with holding torque of 1700.00 oz-in (12 Nm). Built with the best available materials and advanced manufacturing technologies, this stepper motor ensures high precision, high torque density, low resonance, quiet motion, low motor heating, and smooth movement. It has been proved performance excellence in many industrial applications.
Model: 86HS120
Frame Size: NEMA 34
Phase: 2
Step Angle: 1.8°
Holding Torque: 1700 Oz-in (12 Nm)
Number of Leads: 8
Shaft Type: Single
Shaft Size: 0.625 inch (15.875 mm)
Parallel Phase Current: 6.8 A
Series Phase Current: 4.9 A
Parallel Inductance: 2.18 mH
Serious Inductance: 8.7 mH
Parallel Resistance: 0.35 Ohm
Series Resistance: 1.4 Ohm
Rotor Inertia: 0.0564 oz-in-sec2
Length: 6.14 inch (156 mm)
Weight: 11.89 lbs (5.3 kg)
