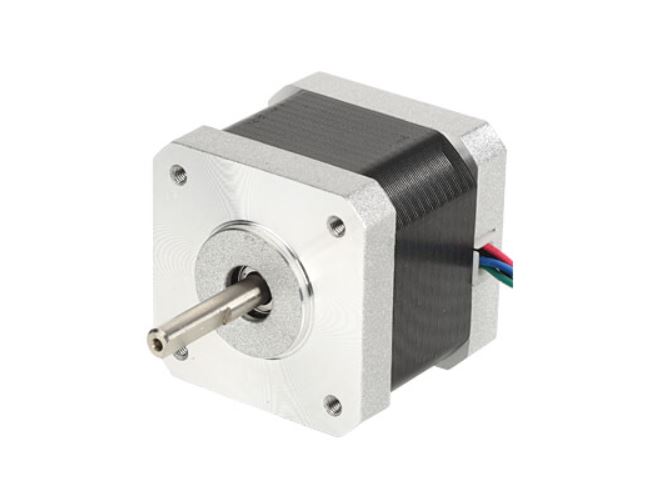

The 42HS02 is a 2-phase NEMA 17 hybrid stepper motor from Leadshine with holding torque of 31.20 oz-in (0.22 Nm). Built with the best available materials and advanced manufacturing technologies, this stepper motor ensures high precision, high torque density, low resonance, quiet motion, low motor heating, and smooth movement. It has been proved performance excellence in many industrial applications.
Model: 42HS02
Frame Size: NEMA 17
Phase: 2
Step Angle: 1.8°
Holding Torque: 31.2 Oz-in (0.22 Nm)
Number of Leads: 4
Shaft Type: Single
Shaft Size: 0.197 inch (5.000 mm)
Phase Current: 0.4 A
Inductance: 21 mH
Resistance: 12.5 Ohm
Rotor Inertia: 0.00081 oz-in-sec2
Length: 1.57 inch (40 mm)
Weight: 0.53 lb (0.24 kg)
